Tuxedo
15K Heavy-Duty Two-Post Car/SUV/Truck Lift (TP15KCX)
15K Heavy-Duty Two-Post Car/SUV/Truck Lift (TP15KCX)
Regular price
$5,899.00 USD
Regular price
Sale price
$5,899.00 USD
Unit price
per
Couldn't load pickup availability

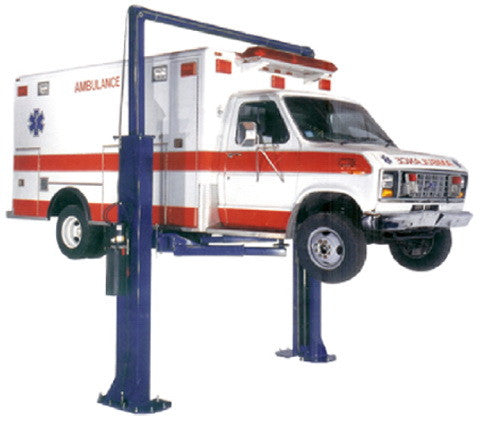

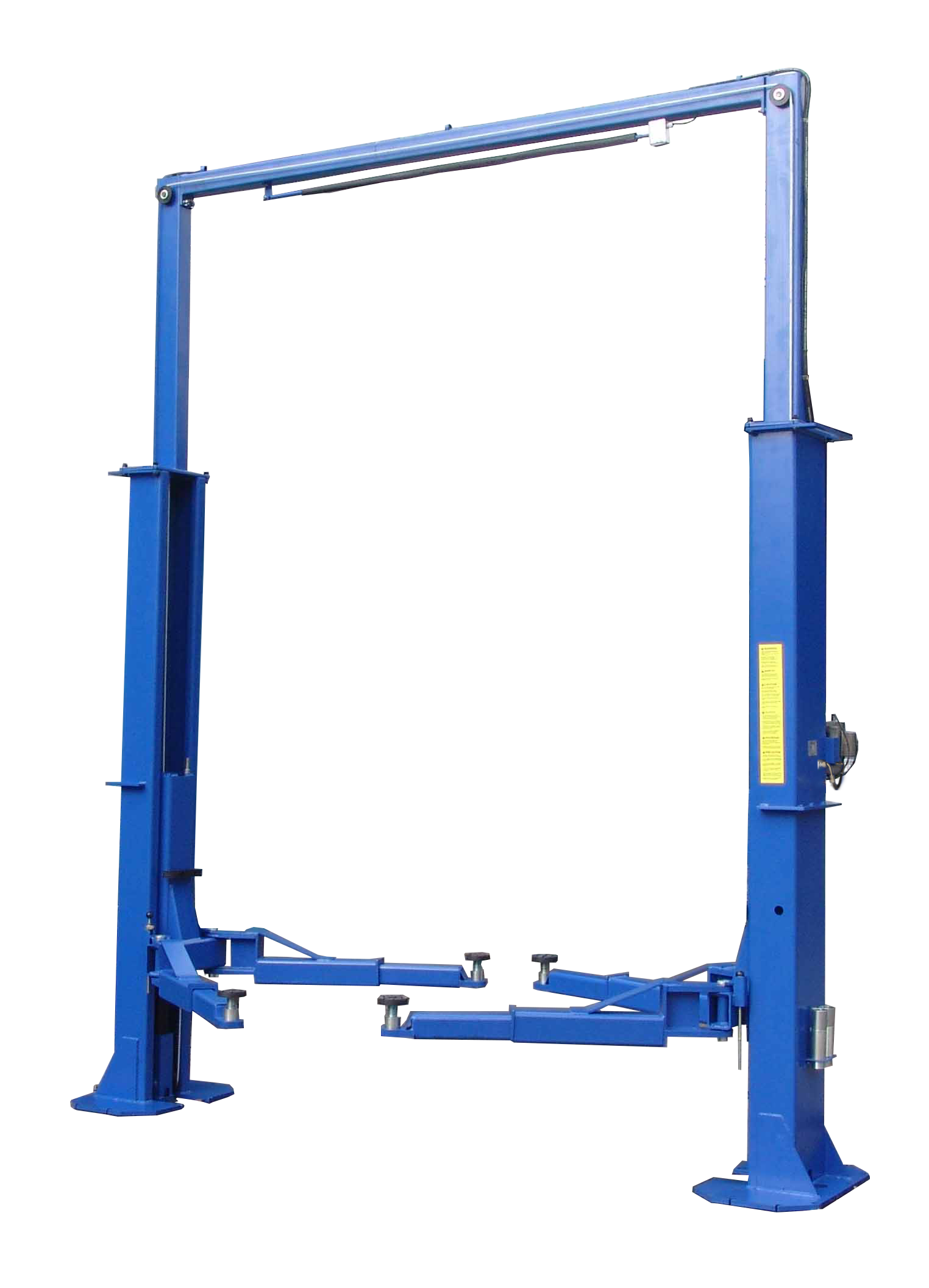

Two-Post 15K chain-driven symmetric automotive lift.
| LIFT MODEL | LTP-15X |
| CAPACITY | 15,000 LBS |
| LIFT CONFIGURATION | OVERHEAD |
| CEILING HEIGHT MINIMUM | 15' |
| HEIGHT OVERALL | 179.5" (14'11") |
| LIFTING HEIGHT | 76.5" (6'4-1/2") |
| LIFTING HEIGHT (W/ADAPTERS) | 87" (6'11") |
| LOW PAD HEIGHT | 9" |
| WIDTH OVERALL | 148-3/8" (12' 4-3/8") |
| WIDTH BETWEEN COLUMNS | 120-3/4" (10'3/4") |
| TIRE/DRIVE-THRU WIDTH | 108" (9') |
| ARM ATRICULATION | SYMMETRIC |
| FRONT ARM REACH (MIN/MAX) | 37" - 52" |
| REAR ARM REACH (MIN/MAX) | 37" - 52" |

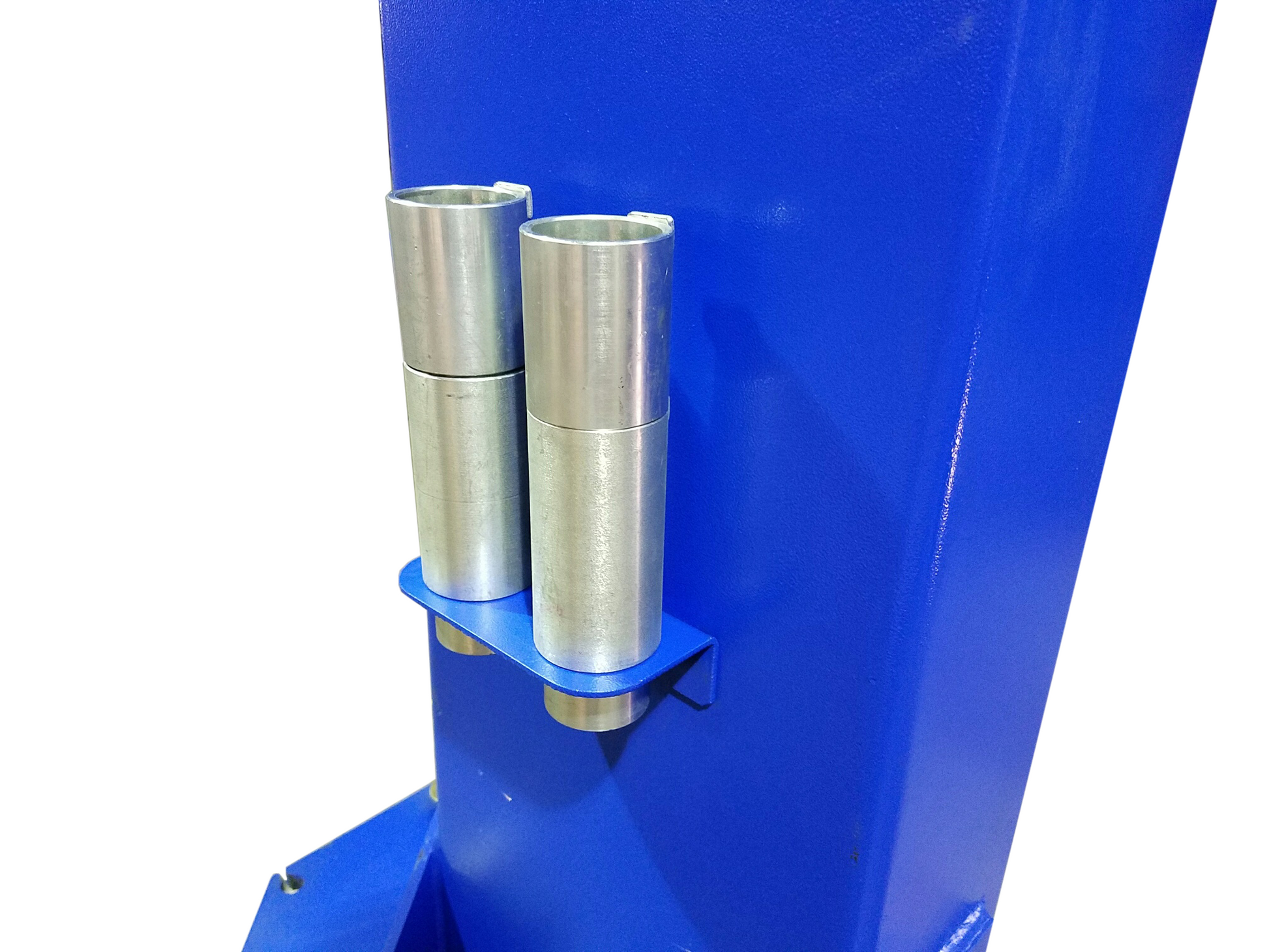

| ADAPTERS (2 SETS OF 4 INCLUDED) | 3" AND 5" |
| MAX. LOAD PER ARM (LBS) | 3750 |
| SAFETY LOCKING SYSTEM | SINGLE POINT |
| POWER PACK (HP-V-A) | 2HP/1PH-220V-20A |
| CABLE DIAMETER | 3/8" |
| LIFTING SPEED (SECONDS) | 50 |
| SHIPPING WEIGHT (LBS) | 2474 |
| HYDRAULIC OIL | Non-Detergent / Non-Foaming Hydraulic Oil -- SAE10 / AW32 |
| CONCRETE SPEC (PSI) | 3000 Psi |
| CONCRETE SPEC (Thickness) | 4.25" |
| CONCRETE SPEC (Anchor) | 3/4" X 5-1/2" ANCHORS |
| CONCRETE SPEC (Anchor Depth) | 3.25" MIN. ANCHOR EMBEDMENT |
| CONCRETE SPEC (Edge) | 7" MIN DISTANCE FROM ANY EDGE |
TP15KCX Lift Manual: Click Here
Local Pick-up (Reidsville, NC): 12' - 16' (Open) trailer required for pick-up. Enclosed trailers will not be loaded due to risk of damage to loading ramp.
Shipping / Receiving: Offloading of the delivery truck is the responsibility of the customer. A forklift or similar vehicle is required to unload the lift. Residential delivery is an additional $150 charge by the freight carrier.
