iDeal 10K Two-Post Car Lift - ALI/ETL Certified (TP10KAC-DX)
iDeal 10K Two-Post Car Lift - ALI/ETL Certified (TP10KAC-DX)
Regular price
$4,741.00 USD
Regular price
$0.00 USD
Sale price
$4,741.00 USD
Unit price
/
per
Couldn't load pickup availability

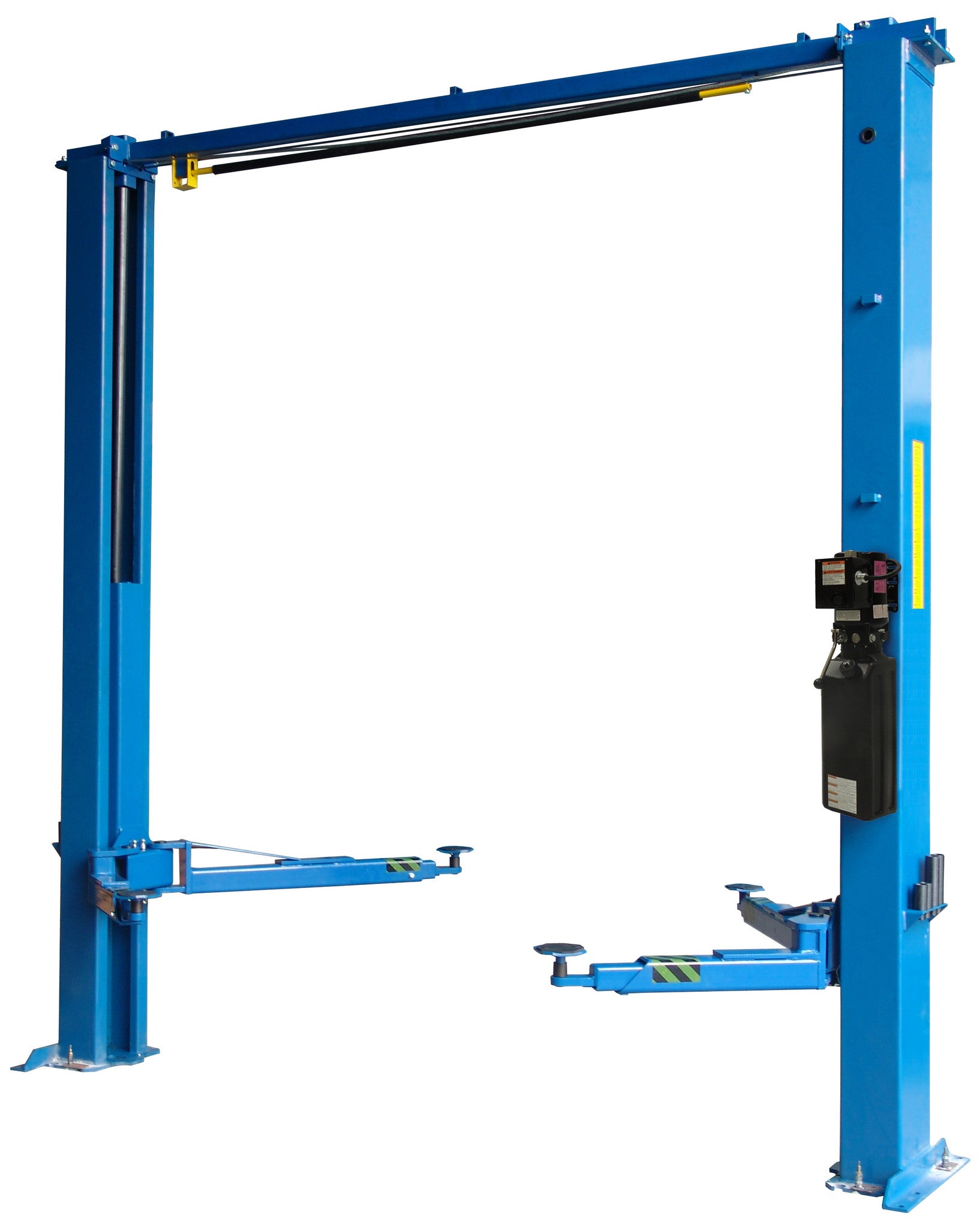

Tuxedo 10K Bi-Symmetric Direct-Drive Automotive Lift
| Model Number | TP10KAC-DX (ALI/ETL Certified) |
| CAPACITY | 10,000 LBS |
| LIFT CONFIGURATION | OVERHEAD |
| CEILING HEIGHT MINIMUM | 12' 4" |
| HEIGHT OVERALL | 144" (12') |
| LIFTING HEIGHT | 71" (5'11") |
| LIFTING HEIGHT (W/ADAPTERS) | 74-7/8" (6'2-7/8") |
| LOW PAD HEIGHT | 4" |
| WIDTH OVERALL | 145-1/2" (12' 1-1/2") |
| WIDTH BETWEEN COLUMNS | 116" (9'8") |
| TIRE/DRIVE-THRU WIDTH | 104" (8'8") |
| ARM ATRICULATION | BI-SYMMETRIC |
| FRONT ARM REACH (MIN/MAX) | 23" - 45" |
| REAR ARM REACH (MIN/MAX) | 41" - 59" |
| ADAPTERS (2 SETS OF 4 INCLUDED) | 2.6" AND 5" |
| MAX. LOAD PER ARM (LBS) | 2500 |
| SAFETY LOCKING SYSTEM | SINGLE POINT |
| POWER PACK (HP-V-A) | 2HP/1PH-220V-20A |
| CABLE DIAMETER | DIRECT DRIVE |
| LIFTING SPEED (SECONDS) | 50 |
| SHIPPING WEIGHT (LBS) | 1705 |
| ------ | ------ |
| CONCRETE SPEC | 3000 PSI / 4.25" THICKNESS |
| HYDRAULIC OIL | AW32 |
TP10KAC-DX Flier: Click Here
Local Pick-up (Reidsville, NC): 12' - 16' (Open) trailer required for pick-up. Enclosed trailers will not be loaded due to risk of damage to loading ramp.
Shipping / Receiving: Offloading of the delivery truck is the responsibility of the customer. A forklift or similar vehicle is required to unload the lift. Residential delivery is an additional $150 charge by the freight carrier.
