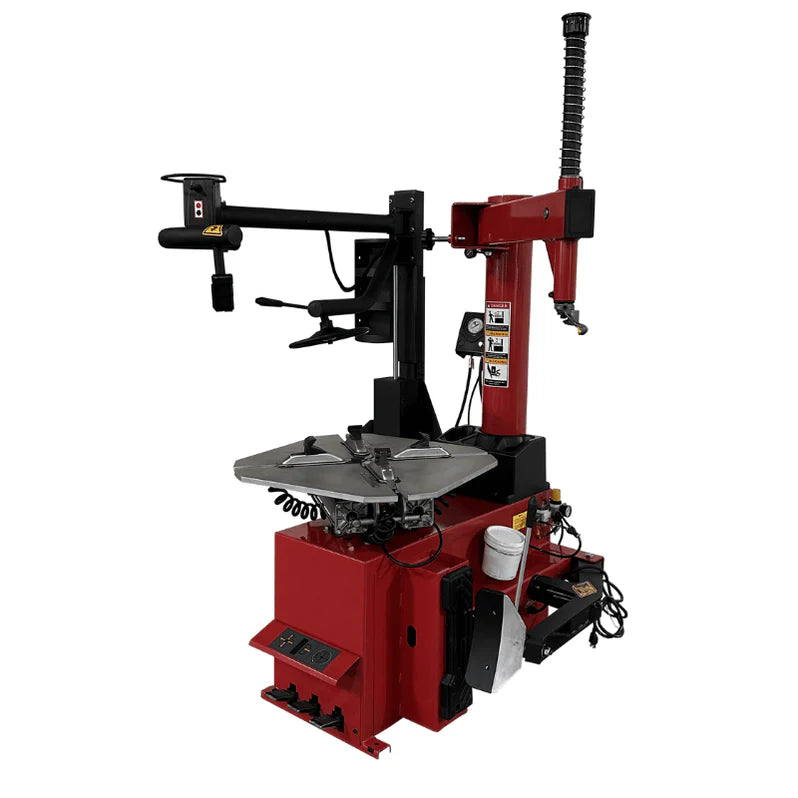

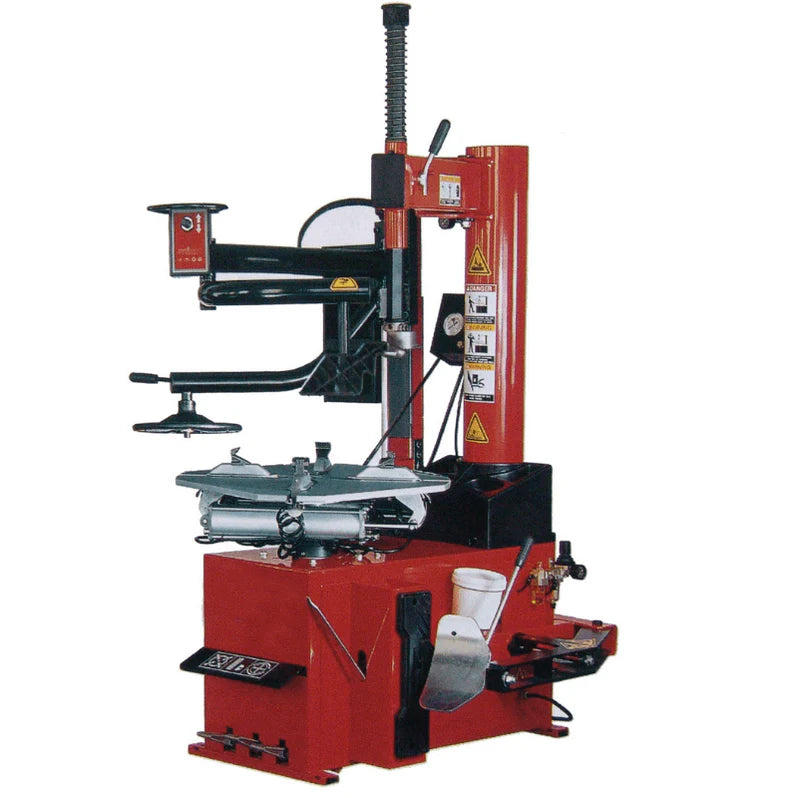

TC950-WPA

TuxedoTC-950-WPA Specification:

• Max Wheel Diameter 47”
• Wheel Width 3” – 15”
• Inside – Rim Clamp Range 15” – 28”
• Outside – Rim Clamp Range 13” – 24”
• Power 110V – 15 Amp – 1PH
• Working Pressure 125 psi
• Ship Weight 880 lbs
• Pallet Dimensions: 37"L 51"W 60"H

Tuxedo TC-950-WPA Special Features:

• Swing Arm Design
• Handles tire to 47″ and rim widths to 15″
• Four pneumatic clamps and double acting cylinders
• Side mounted bead breaker

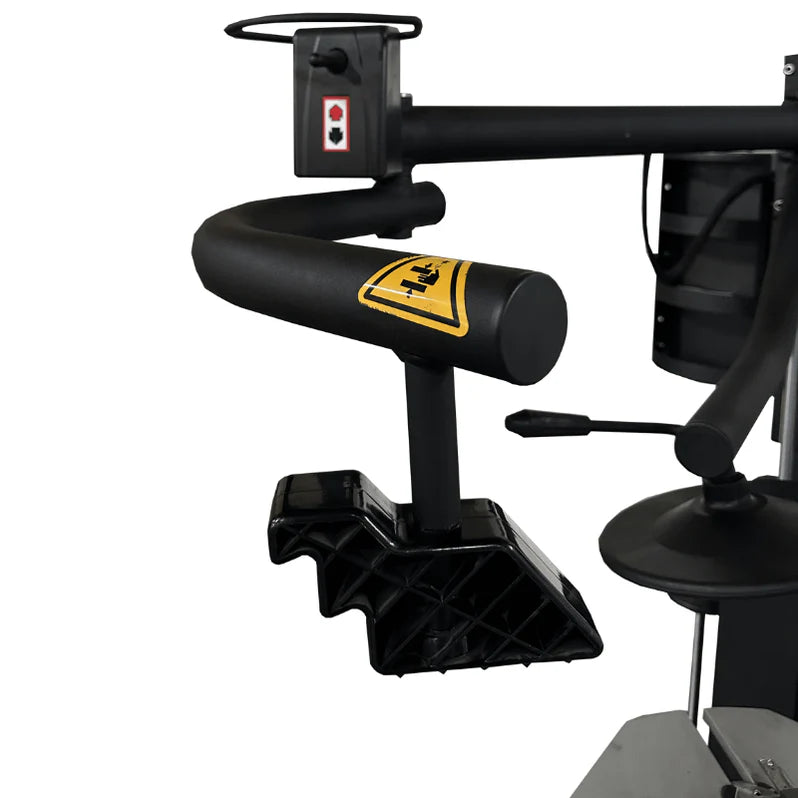

• Press arm for low profile tires
• Bead seating inflation jets in clamping jaws
• No scratching. Machine never contacts rim
• Pressure regulator, oiler and water separator standard
• Lubricator, separator and air pressure
• Tuxedo Warranty:
  One-year (12 months) warranty on all parts and against all product defects, free of charge to our customers, on all equipment.

Tuxedo TC-950-WPA Product Manual:

• Product Manual
