Four Post 8K Storage Lift (LT8K-DX)
Four Post 8K Storage Lift (LT8K-DX)
Couldn't load pickup availability
FREE PICKUP (Reidsville, NC) -- NO WAREHOUSE FEES ADDED

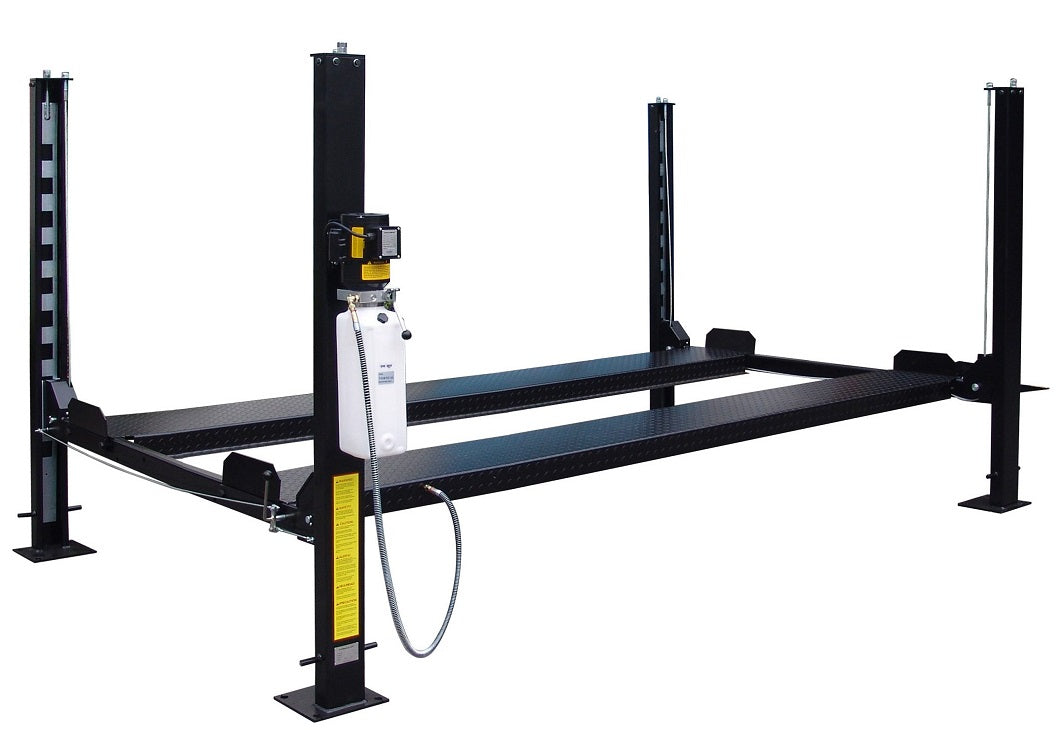

The LiftTech LT8K-DX Four Post Lift is designed and constructed to be a commercial grade lift, with industry leading runway length and drive thru width, allowing the ability to either store or service large vehicles. Includes the standard poly casters, drip trays and jack/tool tray like our other storage lifts.
LiftTech LT8K-DX Storage Lift
| LT8K-DX | |
| CAPACITY (LBS) | 8,000 |
| LIFT CONFIGURATION | 4-POST/STORAGE |
| CEILING HEIGHT MINIMUM | 9' |
| OVERAL LENGTH (w/RAMPS) | 207-5/16" |
| OVERALL WIDTH | |
| POST / COLUMN HEIGHT | 86" |
| MAX CLEARANCE (UNDER TRACKS) | 70" |
| LIFTING HEIGHT | 74-3/4" |
| WIDTH BETWEEN POSTS | 94-1/2" |
| DRIVE-THRU WIDTH | 80" |
| RAMP: LENGTH / WIDTH | 36" / 18-1/2" |
| RUNWAY: LENGTH / HEIGHT | 165.5" (13'8.5") / 4.3" |
| RUNWAY: DISTANCE BETWEEN | 37.2" |
| RUNWAY: OUTSIDE -to- OUTSIDE | 74.8" |
| SAFETY LOCK RELEASE / POSTIONS | Single Point - Manual / 10 |
| POWER PACK (HP/PH-V-A) | 1HP/1PH-110V-20A |
| CABLE DIAMETER | 3/8" |
| DRIP TRAYS (INCLUDED) | YES |
| CASTER (MOBILE) | YES |
| SHIPPING WEIGHT (LBS) | 1,705LBS |
| CONCRETE SPECS | 3000 PSI / 4.25" Thickness |
| ANCHOR BOLTS | 3.25" EMBEDMENT / 7" FROM EDGE |
| HYDRAULIC OIL (NON-DETERGENT) | SAE10 / AW32 |
| Optional ROLLING JACK | SJ-35 |
FP8K-DX Lift Manual: Click Here
Local Pick-up (Reidsville, NC): 12' - 16' (Open) trailer required for pick-up. Enclosed trailers will not be loaded due to risk of damage to loading ramp.
Shipping / Receiving: Offloading of the delivery truck is the responsibility of the customer. A forklift or similar vehicle is required to unload the lift. Residential delivery is an additional $150 charge by the freight carrier.
