Tuxedo

7K Automotive Tilt Lift- 7000TLX

7K Automotive Tilt Lift- 7000TLX

$1,361.00 USD
$1,361.00 USD
Sale Sold out

FREE LOCAL PICKUP (Reidsville, NC) -- NO WAREHOUSE FEES ADDED

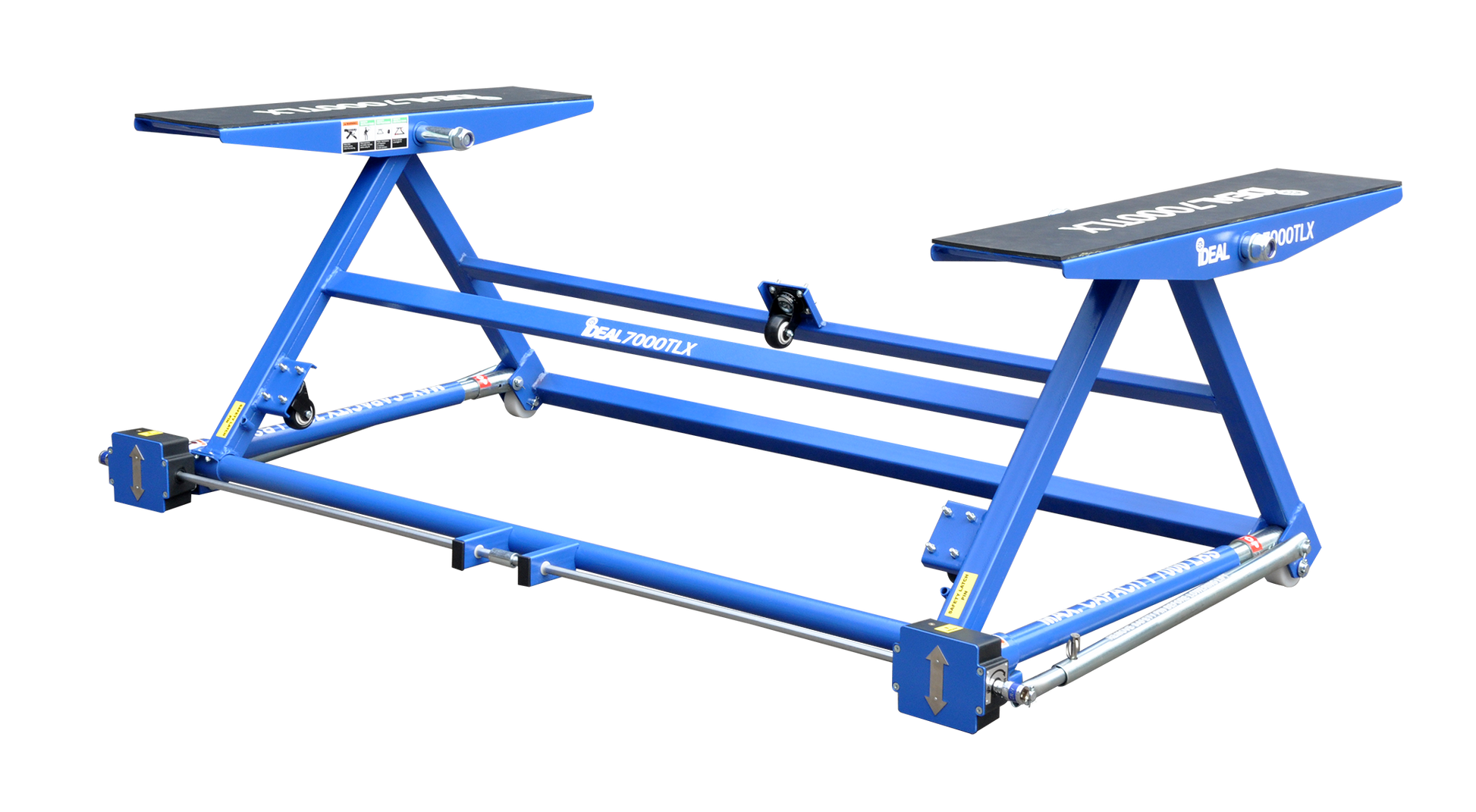

The iDEAL 7000TLX (TLX-7000) is one of the most economical, unique, versatile & convenient vehicle lifting solutions in the market today. The iDEAL 7000TLX is a low-profile, lightweight, portable 7,000 lb. capacity low-rise scissor frame contact tilt lift designed for unibody type passenger & small sport utility vehicles. Equipped with twin dual-action precision gear drive mechanisms, the lifting operation is simply powered by the torque supplied from an electric handheld drill. Additionally, the ‘exclusive’ dual independent safety lock bars also allow for full operation from either side of the lift. The unique vehicle ‘lift & tilt’ operation provides greater overall accessibility to vehicle, while also being able to quickly & conveniently be stored out of the way. Designed for multi-use applications, the iDEAL 7000TLX can be widely used in residential garages, auto service shops, autobody repair centers, car dealers or for detailing, and inside Paint Spray Booths.

Local Pick-up (Reidsville, NC):  12' - 16' (Open) trailer required for pick-up.  Enclosed trailers will not be loaded due to risk of damage to loading ramp.

Shipping / Receiving:  Offloading of the delivery truck is the responsibility of the customer.  A forklift or similar vehicle is required to unload the lift.  Residential delivery is an additional $150 charge by the freight carrier.

iDEAL 7000TLX Automotive Tilt Lift

SPECIFICATION 7000 TLX
Lift Capacity  7,000 Lbs
Overall Length 51-3/4"
Overall Width 64-3/8"
Minimum Height 4-1/2"
Maximum Lift Height 22-1/2" - 23-1/2" (w/Risers)
Lift Speed  30 - 40 Secs
Lift Weight 111
Platform Length & Width 31-1/2" - 7-1/4"
Outside Platform Widths 59-14" - 63-3/4"
Inside Platform Widths 44-1/2" to 49-1/4"
Ship Weight 214
Recommended (Corded) Drill Specs  10 Amp - 120 VAC 1/2"



7000TLX  KEY FEATURES / ATTRIBUTES
Supports most basic vehicle maintenance tasks (Inspections, Oil, Wheels, etc.)
Autobody Repair / Auto Detailing / Vehicle Storage / Vehicle Display-Showcase
Lifting from either side of lift: Mechanical (Power drill) or Manual (Handle or Socket)
Low-Profile (i.e. exotics), Lightweight (two-man lift), Portable & Storable (wall-mount)
Adjustable width platforms / Indoor or Outdoor Use  /  1 Year Limited Warranty

7000 TLX FAQ's: Click Here

7000 TLX Flier: Click Here

7000 TLX Manual: Click Here


Standard Equipment:
(1) Manual ‘gear-drive’ handle and-or  1/2" ratchet adapter can also be used.
(2) Drill adapters (4x)
(3) Wall hanger brackets (2x) for storage (mounting hardware NOT included).
(4) Platform Risers
(5) Jack Stand
Optional Equipment:
Floor Rail Kit available for uneven/rough surfaces (TLX-7000-FLRAILKIT@ $130).

3 Basic Lift Points / Positions:
(1) Front Engine / Front Wheel Drive - recommended to position the lift under vehicle w/gear boxes positioned about 4” behind the front wheels.
(2) Front Engine / Rear Wheel Drive - recommended to position the lift under vehicle w/gear boxes positioned about 12” behind the front wheels
(3) Rear Engine / Rear Wheel Drive - recommended to position the lift w/gear boxes facing towards rear wheels about 4” from the back wheels.

Maintenance/Safety Considerations:
Maintenance of gear-drives using grease zerks on top of drive boxes.
Do not use this product with body-on-frame type construction
Mandatory to use the jack stand for stability.
Lift should not tilt of its own - monitor vehicle’s center of gravity changes (I.E. Removing heavy vehicle parts or components / engine, wheels, axle, etc.)
Vehicle should NOT be held in a horizontal lifted position (requires jack stand for proper/safe operation).
DO NOT use of pneumatic air tools - high probability of damage to drive-gear mechanisms.
NOT designed for drive-over - lift must be positioned under the vehicle from either  driver/passenger side.
